| Detail: | ZTE EFTH Service Board 16-port 10G EPON interface board with PR30 symmetric module applied for ZXA10 C600/C650/C680 |
| Model: | EFTH |
| Condition: | Factory Sealed New; In Stock |
| Related: | |
| Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
5
|
2-7 Days
US$
|
| Payment: |
More
|

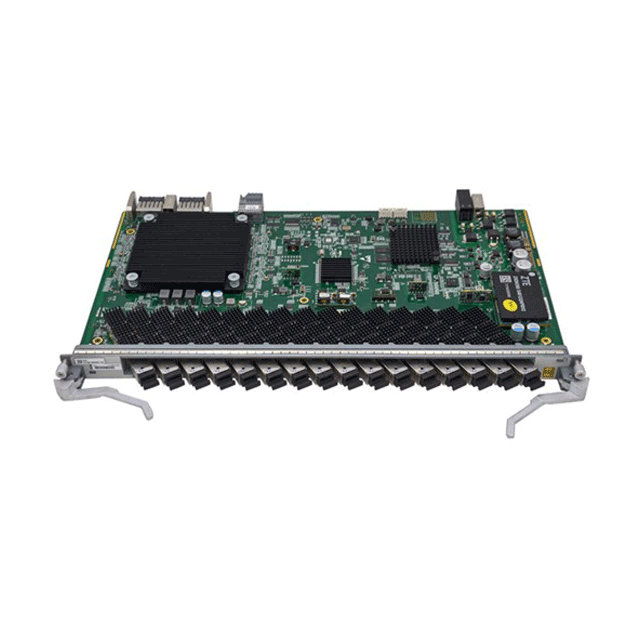

ZTE EFTH Service Board is a 16-port 10G EPON interface board with PR30 symmetric module applied for ZTE ZXA10 C600/C650/C680
Board | EFTH |
EPON Port | 16-port 10G EPON |
Type | PR30 Module : Single Fiber Bidirectional Optical Module, Class PR30 Symmetric |
Operating Wavelength | Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm |
Encapsulation Type | SFP |
Port Rate | Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s |
Minimun Output Optical Power | 10G: 2dBm; GE: 3dBm |
Maximum Output Optical Power | 10G: 5dBm; GE: 7dBm |
Maximum Receiver Sensitivity | 10G: -28dBm; GE: -29.78dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | 10G: -6dBm; GE: -9dBm |
Extinction Ratio | 10G: 6dB; GE: 9dB |
Weight | 1.74kg |
Dimensions (H x W x D) | 393.1 mm × 23.9 mm × 214 mm |
• Apply to ZTE ZXA10 C600/C650/C680
• Maximum split ratio: 1:128
• Transmission distance: 20km
• GE Output optical power: 3.0~7.0 dBm
• 10G Output optical power: 2.0~5.0 dBm
Do you have any questions about the EFTH?
Contact us now via [email protected]
What is Guaranteed.
After receiving your order, take a full month to try it out. If you find quality is not good , we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's guaranteed.
After your order items which are available. We will use most fast delivery way to global countries. Normally we will ship out cargos during 3 -5 days. And international delivery will take about 3- 10 days according to your location.
Service Never Ends.
Hardwares Warrany Time:
Original New Sealed Hardware: 3 Years
Refurbished/Used Original Devices: 1 Year
After warranty time, you also can contact us to return back for repair service. Everything you purchase from HI-NETWORK.COM. We will offer lifetime online service support for your any possible questions.
