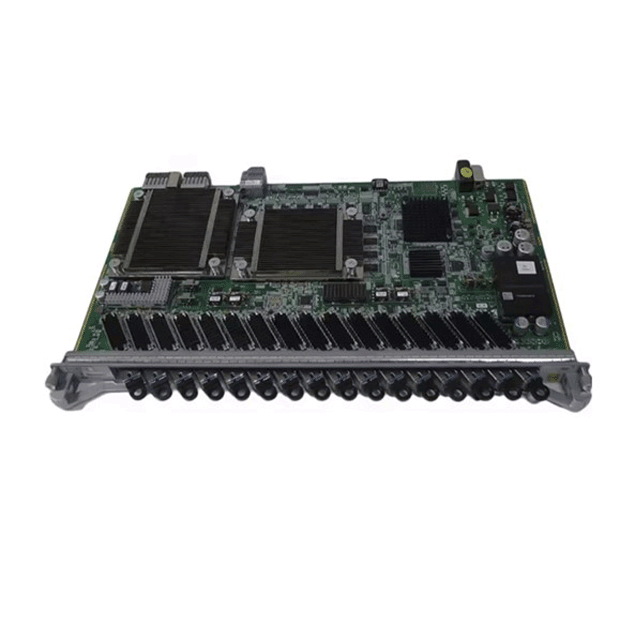

| Detail: | ZTE EFTL Service Board 16 Port 10GE EPON service board with 16 symmetric PR30 modules applied for C600 series OLT |
| Model: | EFTL |
| Condition: | Factory Sealed New; In Stock |
| Related: | |
| Warranty: |
1 Year-Warranty
100% Money-back
Free After-Sales Service
|
| Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
| Ships to:
5
|
2-7 Days
US$
|
| Payment: |
More
|
Board | EFTL |
EPON Port | 16-port 10G EPON |
Type | PR30 Module : Single Fiber Bidirectional Optical Module, Class PR30 Symmetric |
Operating Wavelength | Tx: 1577nm, 1490nm; Rx: 1270nm, 1310nm |
Encapsulation Type | SFP |
Port Rate | Tx: 10.3125Gbit/s; 10.3125Gbit/s; Rx: 1.25Gbit/s, 1.25Gbit/s |
Minimun Output Optical Power | 10G: 2dBm; GE: 3dBm |
Maximum Output Optical Power | 10G: 5dBm; GE: 7dBm |
Maximum Receiver Sensitivity | 10G: -28dBm; GE: -29.78dBm |
Optical Connector Type | SC |
Optical Fiber Type | Single-mode |
Reach | 20.00 km |
Overload Optical Power | 10G: -6dBm; GE: -9dBm |
Extinction Ratio | 10G: 6dB; GE: 9dB |
Weight | 1.74kg |
Dimensions (H x W x D) | 393.1 mm × 23.9 mm × 214 mm |
• High Density, energy Saving, low power consumption, support 1024 access users
• Manual shutdown of idle PON port to avoid power waste
• Supporting the maximum distance difference between two ONUs and PON ports under the same PON port 40 km, simplified network planning
• Intelligent Management Channel
• Level 4 HQoS to Improve User Experience
• 9216 Jumbo frame, greatly improving transmission efficiency
• Easy to operate and maintain
• Real-time hooligans ONU detection and isolation to ensure stable operation of business
• Variable Length OMCI to Improve Upgrade Efficiency and Shorten Business Interruption Time
• 1:128 eOTDR, Accurate Fault Responsibility Division and Fast Fault Location
• Maximum spectral ratio:1:128
